DC to AC Converter Guide
Complete Circuit Diagrams & IC Components
Master DC to AC Conversion
Learn how to convert Direct Current (DC) to Alternating Current (AC) using various IC components, circuit topologies, and design techniques. From basic H-bridge configurations to advanced pure sine wave inverters.
DC to AC conversion, also known as inversion, is the process of converting Direct Current (DC) electrical power into Alternating Current (AC) electrical power. This conversion is essential for powering AC devices from DC sources like batteries, solar panels, or DC power supplies.
Key Principles:
- Electronic switching to create alternating polarity
- H-bridge configuration for bidirectional current flow
- Transformer for voltage step-up and isolation
- Control circuits for timing and waveform generation
Applications:
- Uninterruptible Power Supplies (UPS)
- Solar power systems and grid-tie inverters
- Electric vehicle charging systems
- Portable power inverters for automotive use

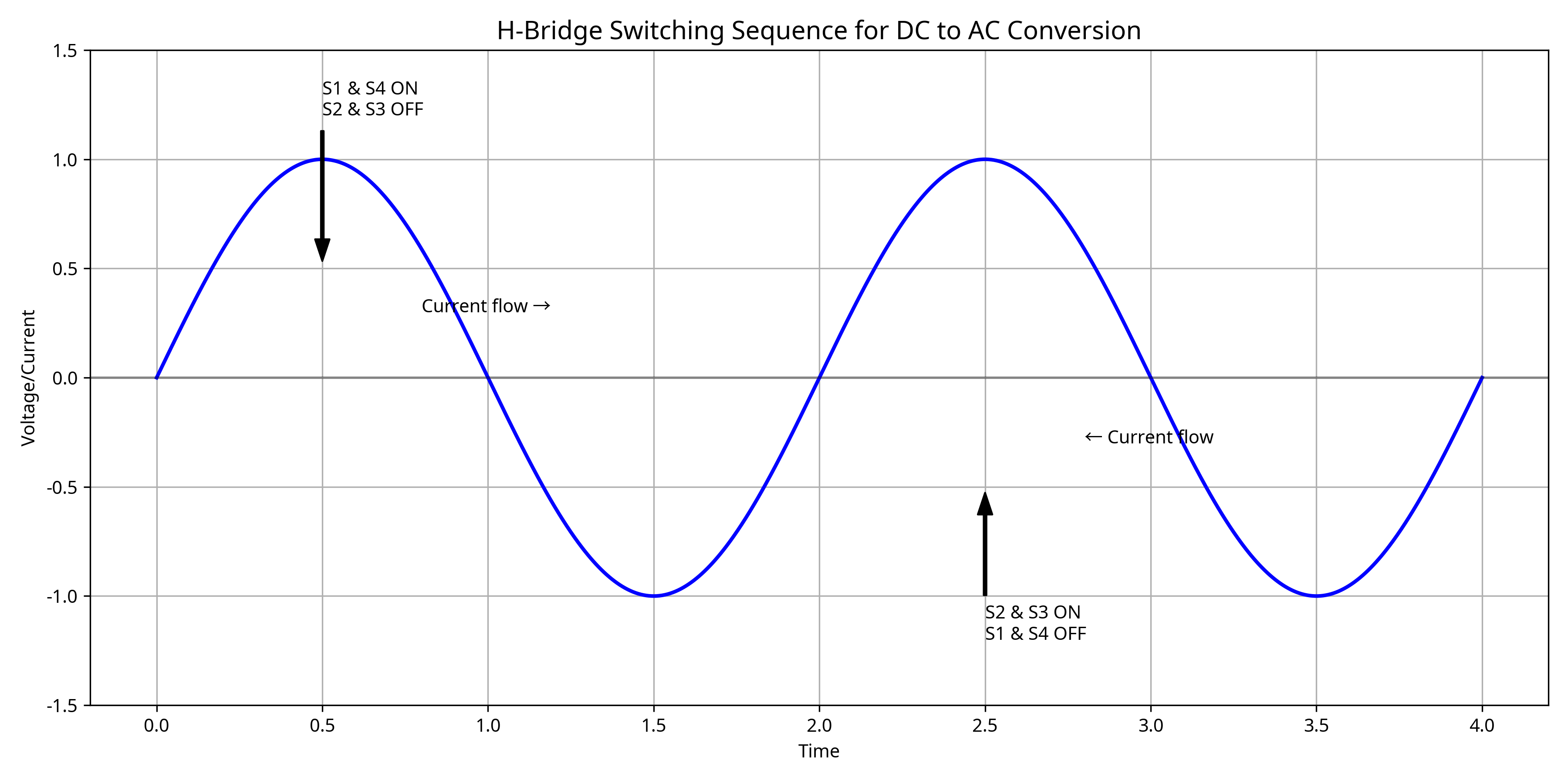

Switching States:
State 1: S1 & S4 ON
Current flows left to right through load
State 2: S2 & S3 ON
Current flows right to left through load
By rapidly alternating between these states at 50Hz or 60Hz, we create an alternating current through the load.
